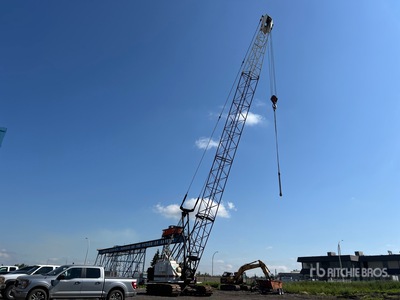

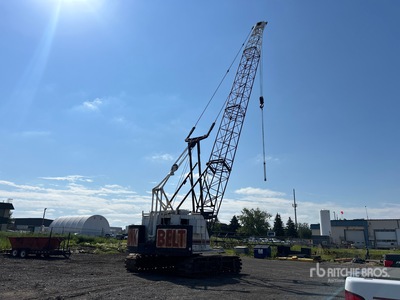

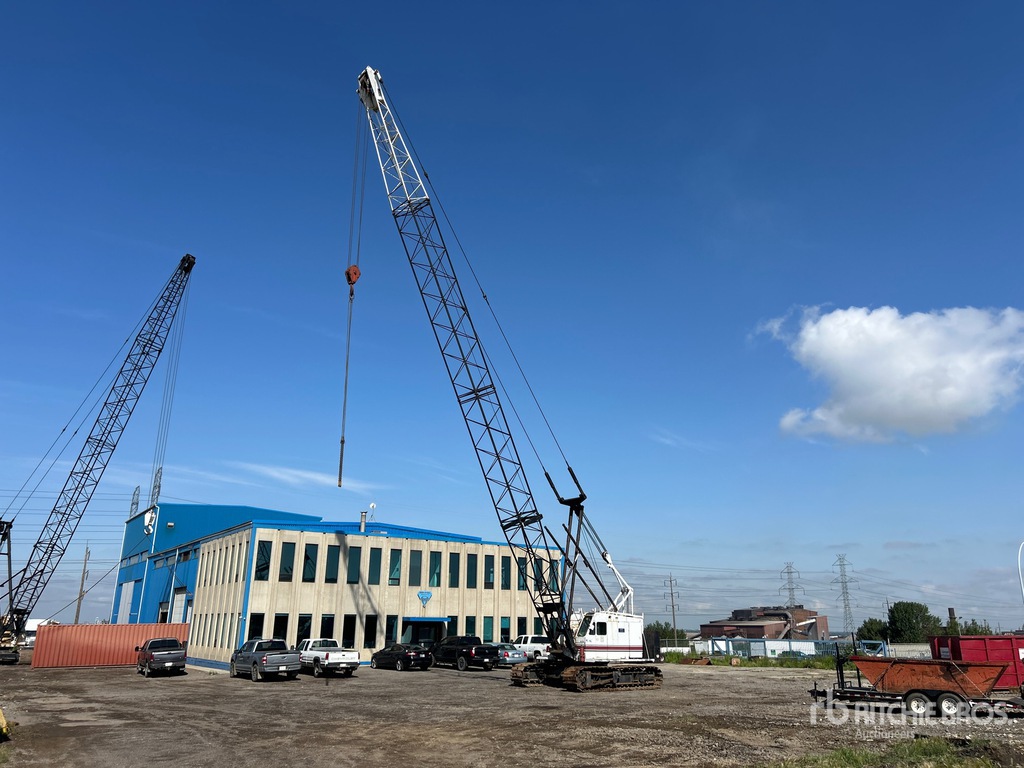

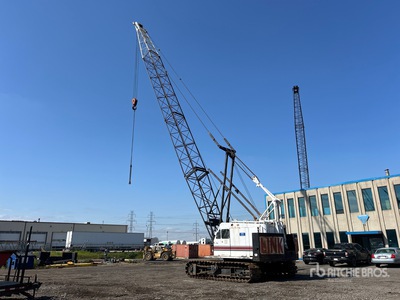

Link-Belt LS118 60 ton رافعة مجنزرة ذات ذراع مشبكي

Serial Number / VIN

9LV20358

Hour Meter / Odometer

13001.4 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.

Paint

Sheet Metal (fiberglass) Condition

Steps/Ladders

Glass

Exterior Lights

Operational

Safety Certification Label

There is a safety certification label with a date of May 6 /2016

Safety Certification Report

Safety Certification Report Not Available

Load Chart

Yes

Travel Alarm

Missing

Horn

Operational

Seat Belts

Not equipped

Current Safety Manual

Current Operator/Maintenance Manual

Glass

No visible damage

Seats/Armrests

Load Moment Indicator

Not operationally checked with a load., Cranesmart

Controls Hydraulic or Air

Drum controls could not be operationally checked

Load Charts

Posted on cab wall, Chart book in cab

Oil Pressure

The gauge registers in the operating range.

Gauges

Operational, Water temp appears inop gauges are inoperable

Hoist Brakes

Not operationally checked

Drum Rotation Indicator

Not operationally checked

Heater

Inoperable

Limited Function Check

The main components are in place and operational as noted.

Engine

No US EPA Label Present

Blow-by (subjective visual observation)

Minor

Starter

Operational

Exhaust System

Radiator

Unable to verify overheating, water temp gauge inoperable

Oil Leaks

No dripping leaks

Fuel Leaks

No dripping leaks

Cooling System Leaks

No dripping leaks

Engine - Left Side

Engine - Right Side

Limited Function Check

The engine started and ran.

Steering Clutches (Crane)

Unit is tough to turn

Clutch

Engages

Drive Chains/Sprockets

Drive Motors

Piece unattached on right side

Final Drives

Limited Function Check (Drivetrain-Crawler Crane)

The drivetrain was operational except as noted.

Hydraulic Tank

Hoses (Hydraulic)

Main Hoist

Not operationally checked

Auxiliary Hoist

Not operationally checked

Limited Function Check

The hydraulic system could not be operationally checked.

Hoist Drums

Mechanical Draw Works, Not operationally checked

Boom Drums

Mechanical Draw Works, Not operationally checked

Hoist and Boom Clutches

Not operationally checked

Main Boom Pins

Unable to verify wear

Pendant Line (Boom Tension Line)

Cable Type, Appear in good condition

Point Sheaves

Bent in some spots

Boom Point Section

Cracking around welds

Gantry/Mast

Looks to be in okay shape, not operationally checked

Boom Stops

Look to be in ok shape

Main Boom Chords

1 bent piece, all pieces beginning to rust

Boom Length

40 ft overall length, 160 ft tip section, 5 Sections

Boom Angle Indicator

Turntable Bearing

Bottom Covers

Hook Rollers

Swing Drive

Operational, Noisy, Swing brake slow to respond, Swing brake does not hold

Limited Function Check

The main components were operational with movement as indicated

Left Roller Frame

Left Track Tensioner

Left Track Pads

Left Grouser Height

0 mm

Left Track Links

Left Track Bushings

Left Carrier Rollers

Left Track Rollers

Left Idler

Left Sprocket

Right Track Tensioner

Right Track Pads

Right Grouser Height

0 mm

Right Carrier Rollers

Right Track Rollers

Right Idler

Right Sprocket

Main Load Block

Unable to function sheaves

Third Drum

Disconnected

Counterweights
