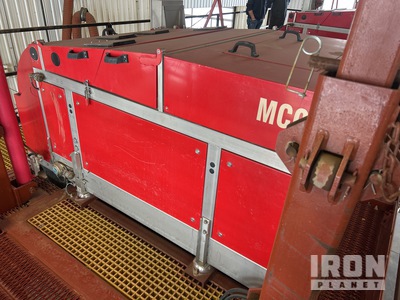

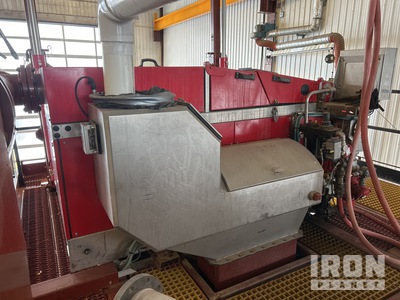

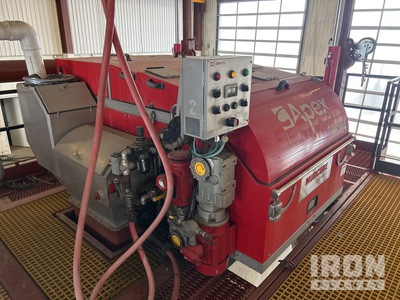

2017 Cubility Mudcube F02-D Solids Control System معدات الحفر

#14850309

كلا

Mud Flow Capacity: <800gpm, Expected Operation Capacity: 475Gpm for OBM and 320Gpm for WBM, Fluid/Mud Type: Drilling Fluid, Oil-Based Mud and Water-Based Mud, Fluid/Mud Temperature: 32-185 F, Mud Density: 8.34-18.36 lb/gal, Fluid/Mud Viscosity: 0.3 ≤100, Filter Belt Mesh sizes API RP 13C, Filter Belt Speed: 26-52 Seconds per Revolution, Secondary Filter Opening: 1mm with Wire Dimension 0.315mm, Pressure Rating: Atmospheric, Vent. Extraction Rate: 700CFM, Air Consumption 1: 46@87 PSI Continuously for Microvibrators, Air Consumption 2: 158@58 PSI Intermittent for Airknife, Weight 1500kg, Body Material SS 316 L, Ex Classification: ATEX Zone 1, Temp Class T4, Gas Group IIB, Ambient Temperature 32 to 104F, Electric Control Panel, Vacuum Pump Assembly
